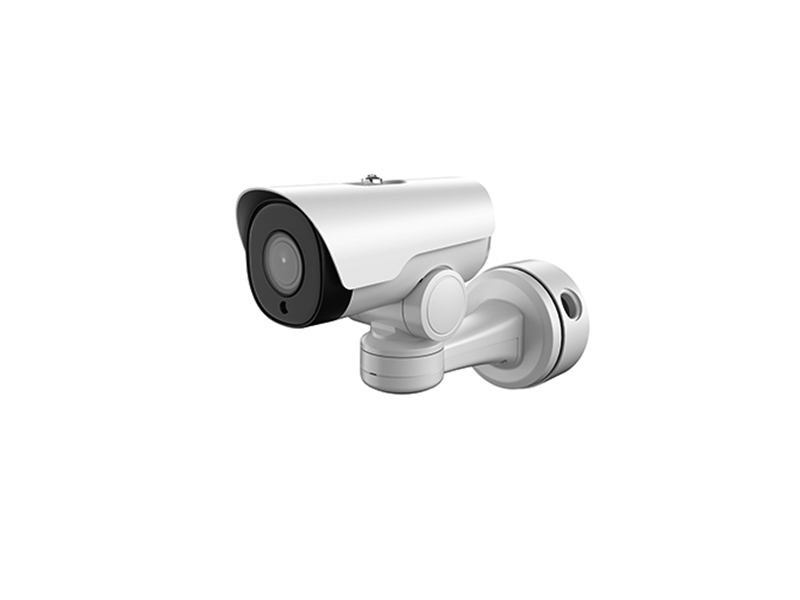

Product Name: 8MP 10X Auto-Focus 5~50 MM Waterproof IP Bullet Camera            Product Model: VDC-MRB17IP80MS-10XA

Main Features：

◆8MP Auto Focus IP66 IP Bullet camera ◆1/2.8" SONY 8mega CMOS image sensor ◆8MP Dual stream output ◆4pcs Array Led IR distance 50-70M ◆Motorized 5~50mm ◆Support ONVIF ◆ Bracket Horizontal 270°. Vertial 70° ◆DC 12V&POE Power supply
8MP 10X Auto-Focus 5~50 MM Waterproof IP Bullet Camera

Image Sensor 1/2.8" SONY 8MP CMOS Sensor
SOC MStar328Q/338Q+ SONY IMX415
Effective Pixel 3840*2160@20fps
Scanning System Progressive
Electronic Shutter Auto/Manual 1/50~1/60s-1/10000s
Min.Illumination Color:0.01 Lux/F1.4, B/W:0.001Lux/F1.4, 0Lux(IR ON)
S/N Ratio >72DB
CAMERA FEATURE
IR Distance 4pcs Array Led IR 50-70M /  White lights
Day/Night Auto(ICR)/Color/B/W/Warm light support/Full color
BLC Auto
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3DNR
DWDR  ≥80dB
Human Shap detecting Support
Area Detecting Support
LENS
Focus Length Motorized Vari-focus 5~50mm
Max Aperture F1.4
Angle of View 50.85°(Wide)~7.67°(Tele)(H)/27.78°~4.36°(V) 1/2.7" Sensor
Mount Type Ф14
Iris Type Fixed Iris
VIDEO&Audio
Video Compression H.265/H.265+/H.264/MJPEG
Stream Main Stream: 3840*2160@20fps/3072*2048/2592*1944/2560*1440/2304*1296/2048*1536/1080P/960P/720P
Sub Stream ：720*480D1/VGA/640*360/CIF@30fps
Video Bit rate 32 Kbps~16Mbps
Audio Compression G.711a/ G.711u
NETWORK
Ethernet RJ45(10/100M Base-T)
Protocol HTTP/RTSP/DHCP/NTP/ONVIF/P2P
GB28181 RTMP Optional
ONVIF Support
Smart Phone iPhone, IPad, Android
Browser IE, Chrome, Firefox, Safari
Peripheral Interface
Audio / Talkback input 1ch audio  input /1ch audio output(Optional)
Storage Function support TF card storage expansion (maximum 128G) (Optional)
Alarm I/O alarm input&out(Optional)
GENERAL
Power Supply  DC12V±10%  POE(802.3af)
Power Consumption  <5W
Working Condition Temperature:-10°C~+60°C, Humidity:10%~90%
Ingress Protection IP66
Dimensions 266(L) *166(W)*93(H)mm
