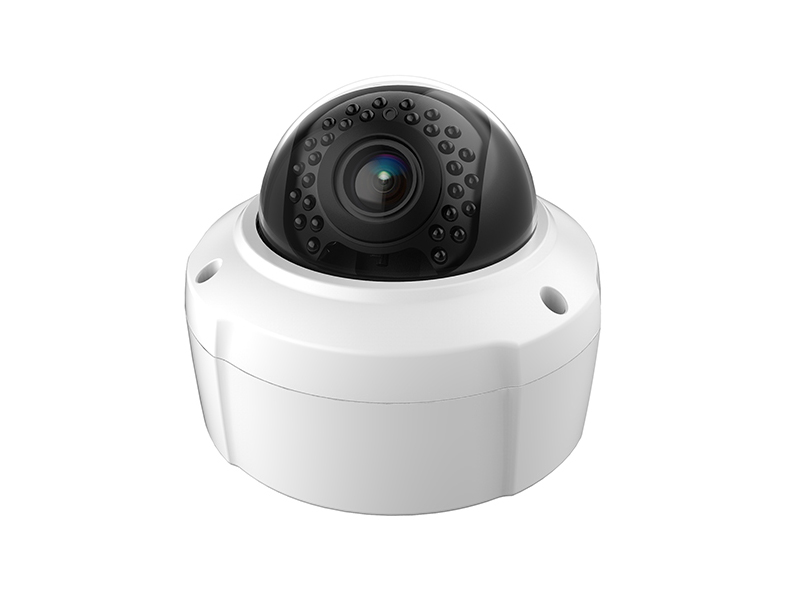

内容编辑Product Name: 12MP AI manual Focus 2.7~13.5mmVandal-proof IP Dome Camera Product Model: VDC-VMRD20IP12MO
Main Features：
◆12MP Manual Focus Vandal-proof dome camera ◆1/2.49" OV 12 mega CMOS image sensor ◆12 MP Dual stream output ◆30pcs Φ5 Led IR distance 30M ◆Manual Lens 2.7~13.5mm ◆Support ONVIF ◆DC 12V&POE Power supply ◆AI Deep Perimeter
| Image Sensor | 1/2.49" Omnivision 12MP CMOS Sensor |
| SOC | MStar SSC359G+ OV OS12D40 |
| Effective Pixel | 4000*3000@1~30fps |
| Scanning System | Progressive |
| Electronic Shutter | Auto/Manual 1/50~1/60s-1/10000s |
| Min.Illumination | Color:0.01 Lux/F1.4, B/W:0.001Lux/F1.4, 0Lux(IR ON) |
| S/N Ratio | >72DB |
| CAMERA FEATURE | |
| IR Distance | 30pcs Ф5 IR Led IR 30M |
| Day/Night | Auto(ICR)/Color/B/W/Warm light support/Full color |
| BLC | Auto |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| DWDR | ≥80dB |
| Human Shap detecting | Support |
| Motion Detecting | Support |
| LENS | |
| Focus Length | Manual Vari-focus 2.7~13.5mm |
| Max Aperture | F1.4 |
| Angle of View | 113°(Wide)~31.4°(Tele)(H)/58.4°~17.6°(V) 1/2.7" Sensor |
| Mount Type | Ф14 |
| Iris Type | Fixed Iris |
| VIDEO&Audio | |
| Video Compression | H.265/H.265+/H.264/MJPEG |
| Stream | Main Stream:30@FPS(4000×3000,3840×2160,3072×2048,2592×1944) 60@FPS(2560×1440,2304×1296,1920*1080,1280*720 |
| Sub Stream:720×480,D1,VGA,640×360 | |
| Video Bit rate | 0.1Mbps~12Mbps |
| Audio Compression | G.711a/ G.711u |
| Audio / Talkback input | 1ch linear t input /1ch linear output(Optional) ,Support talkback |
| AI Smart Function | |
| Deep perimeter | boundary crossing detecting, Entrance detecting, Exit detecting.district invade detect |
| vehicle pedestrian | motor vehicle,non-motorized vehicle,pedestrian,Classified detection and defense |
| NETWORK | |
| Ethernet | RJ45(10/100M Base-T) |
| Protocol | HTTP/RTSP/DHCP/NTP/ONVIF/P2P |
| GB28181 RTMP Optional | |
| ONVIF | Support |
| Smart Phone | iPhone, IPad, Android |
| Browser | IE, Chrome, Firefox, Safari |
| Peripheral Interface | |
| Storage Function | support TF card storage expansion (maximum 128G) (Optional) |
| Alarm I/O | Regional invasion alarm,perimeter alarm |
| GENERAL | |
| Power Supply | DC12V±10% POE(802.3af) |
| Power Consumption | <5W |
| Working Condition | Temperature:-10°C~+60°C, Humidity:10%~90% |
| Ingress Protection | IP66 |
| Dimensions | Φ152 x 128.3(H)mm |
| Weight | 1.5kg |
