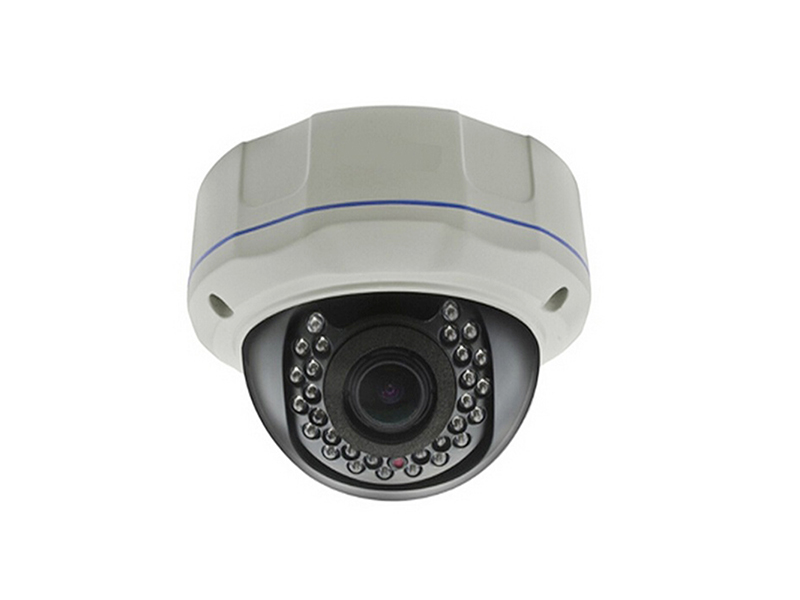

Product Name: 3MP Sony Starlight Waterproof Dome Camera            Product Model: VDC-VMRD17IP30MS

Main Features：

◆3MP Vandal-proof Dome Camera ◆1/2.8" SONY 3mega CMOS image sensor ◆3MP Dual stream output ◆30 pcs Led IR distance 30M ◆F14 2.8-12MM HD Lens ◆Support ONVIF ◆DC 12V&POE Power supply
3MP Sony Starlight Waterproof Dome Camera

Image Sensor 1/2.8" SONY 3MP CMOS Sensor
SOC MSTAR SSC335+ SONY IMX307
Effective Pixel 3MP@25fps 1920*1080P@30fps
Scanning System Progressive
Electronic Shutter Auto/Manual 1/50~1/60s-1/10000s
Min.Illumination Color:0.01 Lux/F1.4, B/W:0.001Lux/F1.4, 0Lux(IR ON)
S/N Ratio >50DB
CAMERA FEATURE
IR Distance 30pcs IR Led IR Distance 30M
Day/Night Auto(ICR)/Color/B/W
BLC Auto
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3DNR
DWDR  ≥80dB
LENS
Focus Length Manual 2.7~13.5MM Lens
Max Aperture F1.4
Angle of View 93°(Wide)~28.7°(Tele) 1/2.7' Sensor
Mount Type M14
Iris Type Fixed Iris
VIDEO&Audio
Video Compression H.265/H.265+/H.264/MJPEG
Stream Main Stream: 25FPS@2304×1296，1920×1080，1280×720@30fps
Sub Stream ：D1/VGA/640*360/CIF@30fps
Video Bit rate H.265 :64K~2048Kbps H.264:64K-4096Kbps
NETWORK
Ethernet RJ45(10/100M Base-T)
Protocol HTTP/RTSP/DHCP/NTP/ONVIF/P2P
GB28181 RTMP Optional
ONVIF Support
Smart Phone iPhone, IPad, Android
Browser IE, Chrome, Firefox, Safari
Peripheral Interface
Audio / Talkback input 1ch audio  input /1ch audio output(optional)
Storage Function (No support)This houising can not add TF board.
Alarm I/O alarm input&out(Optional)
GENERAL
Power Supply  DC12V±10%  POE(802.3af)
Power Consumption  <5W
Working Condition Temperature:-10°C~+60°C, Humidity:10%~90%
Ingress Protection IP66
Dimensions Φ137.7x 101(H)mm
Weight 1.2kg
