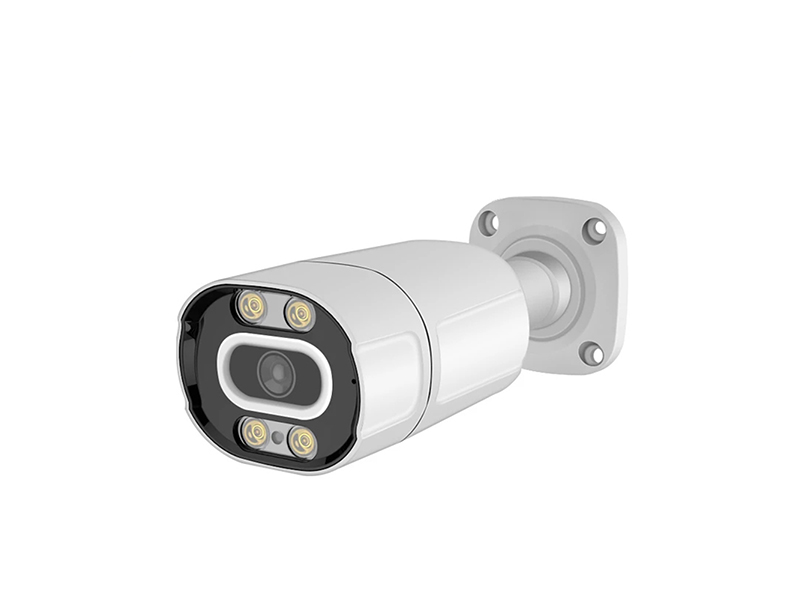

内容编辑Product Name: 3MP Sony Starlight Waterproof Bullet Camera Product Model: VDC-MRB02IP30MS
Main Features：
1)H.265 compression 2) 3.6/6mm HD fixed lens 3) 36pcs IR LEDs, Night vision:25m~30M 4pcs Array optional 4)with internal POE 5) Support P2P/Onvif 6) IP66 waterproof
| HARDWARE | |
| Image Sensor | 1/2.8" SONY 3MP CMOS Sensor |
| SOC | MSTAR SSC335+ SONY IMX307 |
| Effective Pixel | 3MP@25fps 1920*1080P@30fps |
| Scanning System | Progressive |
| Electronic Shutter | Auto/Manual 1/50~1/60s-1/10000s |
| Min.Illumination | Color:0.01 Lux/F1.4, B/W:0.001Lux/F1.4, 0Lux(IR ON) |
| S/N Ratio | >72DB |
| CAMERA FEATURE | |
| IR Distance | 42pcs IR Led IR 35-40M |
| Day/Night | Auto(ICR)/Color/B/W/Warm light support/Full color |
| BLC | Auto |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| DWDR | ≥80dB |
| Human Shap detecting | Support |
| Area Detecting | Support |
| LENS | |
| Focus Length | Fixed HD 3.6mm |
| Max Aperture | F1.4 |
| Angle of View | 79° |
| Mount Type | Ф14 |
| Iris Type | Fixed Iris |
| VIDEO&Audio | |
| Video Compression | H.265/H.265+/H.264/MJPEG |
| Stream | Main Stream: 3840*2160@20fps/3072*2048/2592*1944/2560*1440/2304*1296/2048*1536/1080P/960P/720P |
| Sub Stream ：720*480D1/VGA/640*360/CIF@30fps | |
| Video Bit rate | 32 Kbps~16Mbps |
| Audio Compression | G.711a/ G.711u |
| NETWORK | |
| Ethernet | RJ45(10/100M Base-T) |
| Protocol | HTTP/RTSP/DHCP/NTP/ONVIF/P2P |
| GB28181 RTMP Optional | |
| ONVIF | Support |
| Smart Phone | iPhone, IPad, Android |
| Browser | IE, Chrome, Firefox, Safari |
| Peripheral Interface | |
| Audio / Talkback input | 1ch audio input /1ch audio output(Optional) |
| Storage Function | support TF card storage expansion (maximum 128G) (Optional) |
| Alarm I/O | alarm input&out(Optional) |
| GENERAL | |
| Power Supply | DC12V±10% POE(802.3af) |
| Power Consumption | <5W |
| Working Condition | Temperature:-10°C~+60°C, Humidity:10%~90% |
| Ingress Protection | IP66 |
| Dimensions | 185(L) x 70.5(W)*58(H)mm |
| Weight | 0.45kg |
