内容编辑Product Name: Super starlight black light full Color 2MP AHD Miniature Camera Product Model: VDC-MC18A20XG
Main Features：
◆ 2MP miniaturer AHD Camera◆Resolution up to1920*1080
◆2.8mm balck light HD lens
◆ AHD 1080P video output
◆Day&Night with IR filter
◆DC12V±10%
| Image Sensor | 1/2.9" Progressive Scan CMOS Sensor |
| SOC | Darkness Full color |
| Resolution | 1920(H)*1080(V) |
| Effective Pixel | AHD 1080P |
| TV System | PAL/NTSC(UTC Menu) |
| Scanning System | Progressive |
| Min.Illumination | Color:0.00001 Lux/F1.4 B/W 0.000005 Lux |
| S/N Ratio | ≥68DB |
| Camera Feature | |
| IR Distance | Null /Color |
| Day/Night | External(ICR)/ Auto/Color/B/W |
| Night Vision | |
| Electronic Shutter | Auto/Manual 1/50~1/60s-1/10000s |
| BLC | Auto |
| White Balance | Auto |
| Noise Reduction | 2D/3DNR |
| Video Output |
AHD 1080P/CVBS |
| UTC | No |
| DWDR | Support |
| Privacy Masking | Support |
| Defog | Support |
| Motion detection | Support |
| Mirro | Support |
| Language | English/Simplified&Traditional Chinese |
| Lens | |
| Focus Length | Fixed dark light HD Lens 2.8mm |
| Max Aperture | F 2.2 |
| Angle of View | D×H×V 140°×116°× 60°(1/2.8' sensor) |
| Mount Type | M12 |
| Iris Type | Fixed Iris |
| General | |
| Power Supply | DC12V±10% |
| Power Consumption | <5W |
| Working Condition | Temperature:-20°C~+60°C, Humidity:10%~90% |
| Ingress Protection | IP66 |

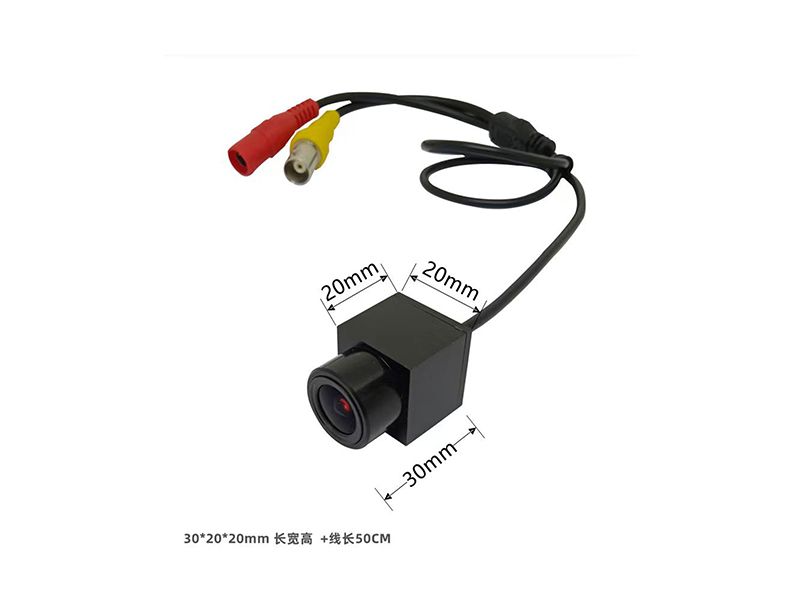

| Dimensions | 20*20*28(L)mm |
| Weight | 0.02kg |
