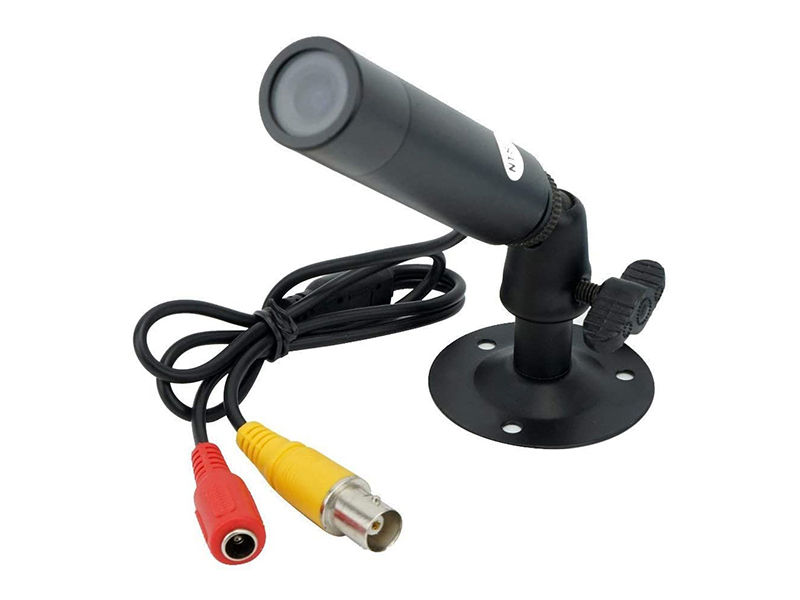

Product Name: 5MP AHD/TVI/CVI/CVBS Starlight light Miniature Camera            Product Model: VDC-MC02F50SE

Main Features：

◆ 5MP SONY Mini Pinhole Lens AHD Camera ◆Resolution up to 2560*1944 ◆ AHD/TVI/CVI/CVBS 4 In 1 video output ◆Day&Night with IR filter ◆ HD 3.6mm Lens ◆DC12V±10%
5MP AHD/TVI/CVI/CVBS Starlight light Miniature Camera

Image Sensor 1/3" Progressive Scan CMOS Sensor
SOC Fuhan 8538M+SONY IMX335
Resolution 2560(H)*1944(V)
Effective Pixel AHD/TVI/CVI 2MP CVBS/960H
TV System PAL/NTSC
Scanning System Progressive
Min.Illumination Color:0.01 Lux/F1.4 B/W 0.005 Lux
S/N Ratio ≥60DB
Camera Feature
IR Distance Null /Color
Day/Night External(ICR)/ Auto/Color/B/W
Electronic Shutter Auto/Manual 1/50~1/60s-1/10000s
BLC Auto
White Balance Auto
Noise Reduction 2D/3DNR
Video Output AHD/TVI/CVI 1080P CVBS
UTC No
DWDR Support
Privacy Masking Support
Defog Support
Motion detection Support
Mirro Support
Language English/Simplified&Traditional Chinese/ etc

Lens
Focus Length Fixed HD 3.6mm
Max Aperture F 1.4
Angle of View 79°
Mount Type M12
Iris Type Fixed Iris
General
Power Supply  DC12V±10%
Power Consumption  <5W
Working Condition Temperature:-20°C~+50°C, Humidity:10%~90%
Ingress Protection IP66
Dimensions 80(L) x 20(θ))mm
Weight 0.08kg
