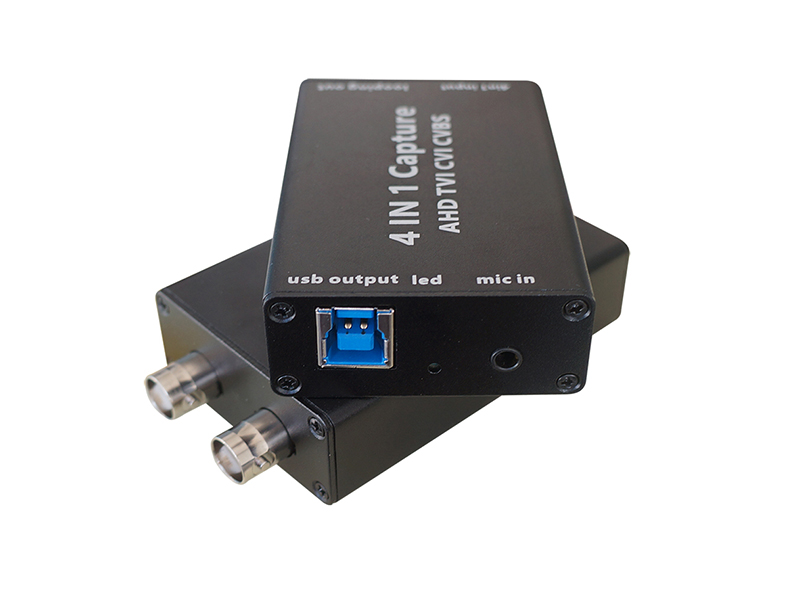

Product Name: AHD TVI CVI CVBS to USB 3.0 video capture card            Product Model: VDC-AHD2USB

Main Features：

*AHD/TVI/CVI/CVBS 4 IN 1 Capture Card *Convert AHD/TVI/CVI/CVBS video signal into USB signal *It support microphone audio input *It compatible OBS, PotPlayer, AMCAP, VLC software
AHD TVI CVI CVBS to USB 3.0 video capture card

 In/out put port

BNC

Input signal

AHD TVI CVI CVBS

Output port

USB3.0

Video resolution

for output

1920*1080、1600*1200、1360*768、1280*1024、1280*960、1280*720、1024*768、800*600、720*480、720*576、640*480

Frame rate

5-60 frame adjustable

A/V capture

Standard UVC/UAC

Driver

Driver free

Operation system

Windows/Linux / Android

Compatible software

OBS/Potplayer（Windows）

Consumption

＜3Wat

Working temp.

-20℃-65℃

Working Humd.

5%-90%

Dimension

97mm*51mm*21mm

Weight

100g

Prev product：No prev product
Next product：4K HDMI to USB 3.0 Video Capture Card
