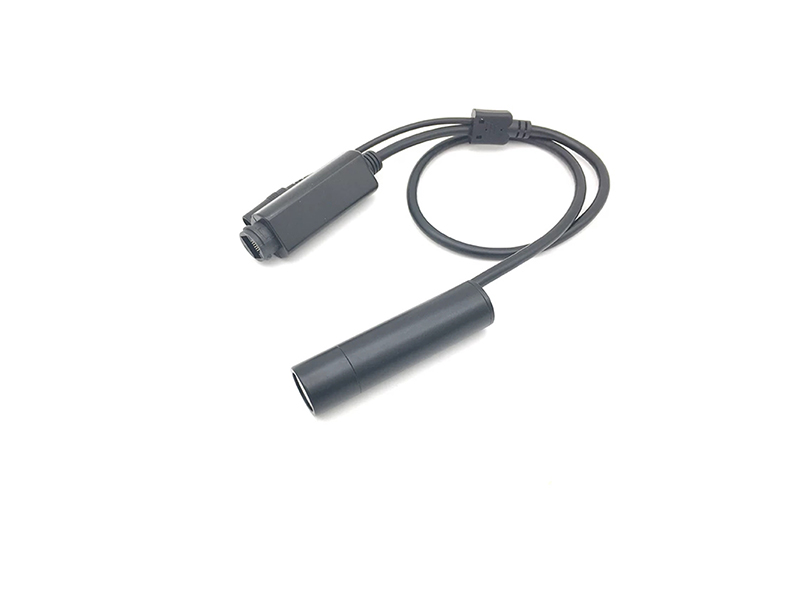

5MP Miniature Network IP Camera with POE--Shenzhen VIDCOM Technology Co.,Ltd.,

Product Name: 5MP Miniature Network IP Camera with POE Product Model: VDC-MC01IP50FG-P

Main Features：

◆ 5MP HD Mini Bullet Camera
◆1/2.9" 5 Mega CMOS image sensor
◆5MP Dual stream output
◆M12 3.7 MM Pinhole HD Lens
◆Support ONVIF
◆DC12V±10% &POE

Model No.	VDC-MC01IP50FG-P
HARDWARE
Image Sensor	1/2.9" GC4653 5MP CMOS Sensor
SOC	FH8852EV200+GC4653
Effective Pixel	25601920@20fps 23041296@1-30fps 1920*1080@1-30fps
Scanning System	Progressive
Electronic Shutter	Auto/Manual 1/50~1/60s-1/10000s
Min.Illumination	Color:0.5 Lux/F1.4, B/W:0.05Lux/F1.4, 0Lux(IR ON)
S/N Ratio	>52DB
CAMERA FEATURE
IR Distance	N/A
Day/Night	IR Filter
BLC	Auto
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	3DNR
DWDR	Up to 4 areas
LENS
Focus Length	Fixed 3.6 MM Lens 6MM/8MM optiona
Max Aperture	F1.4
Angle of View	79°
Mount Type	M12
Iris Type	Fixed Iris
VIDEO&Audio
Video Compression	H.265 H.264
Stream	Main Stream: 2560*1920@20fps 2304×1296@1-30fps 1920x1080(1-25/30fps)
Stream	Sub Stream:704x576(1-25/30fps)
Video Bit rate	H.265 :64K~2048Kbps H.264:64K-4096Kbps
NETWORK
Ethernet	RJ45(10/100M Base-T)
Protocol	IPV4,HTTP, SSL, TCP/IP, UDP, UPNP, ICMP, IGMP, NMP, RTSP, RTP,
Protocol	SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter,Qos,Cloud
ONVIF	ONVIF Version 2.4 /GB28181
Smart Phone	iPhone, IPad, Android
Browser	IE, Chrome, Firefox, Safari
GENERAL
Power Supply	DC12V±10%&POE cable
Power Consumption	<5W
Working Condition	Temperature:-10°C~+60°C, Humidity:10%~90%
Ingress Protection	IP66
Dimensions	￠25 x 80(H)mm
Weight	0.12kg
