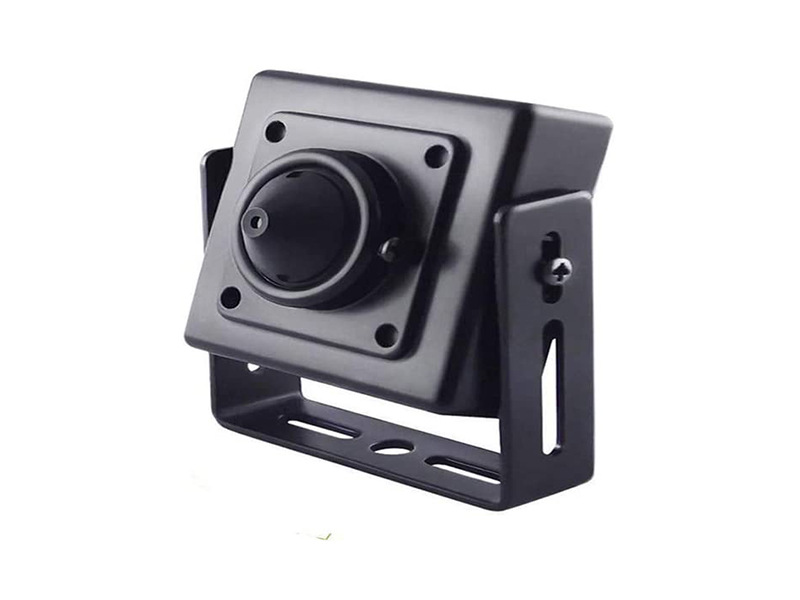

Product Name: 1080P Sony Starlight 30*30mm Mini Pinhole AHD Camera            Product Model: VDC-MC03F20NS-30

Main Features：

◆1080P Sony starlight Camera
◆ 2MP Mini Pinhole Lens AHD Camera
◆Resolution up to1920*1080
◆ AHD/TVI/CVI/CVBS 4 In 1 video output
◆Day&Night with IR filter
◆DC12V±10%
1080P Sony Starlight 30*30mm Mini Pinhole AHD Camera

Model No. VDC-MC03F20NS-30
Image Sensor 1/3" Progressive Scan CMOS Sensor
SOC Nextchip 2441+Sony IMX 307
Resolution 1920(H)*1080(V)
Effective Pixel AHD/TVI/CVI 2MP CVBS/960H
TV System PAL/NTSC(OSD Switch)
Scanning System Progressive
Min.Illumination Color:0.001 Lux/F1.4 B/W 0.0005 Lux
S/N Ratio ≥65DB
Camera Feature
IR Distance Null /Color
Day/Night External(ICR)/ Auto/Color/B/W
Electronic Shutter Auto/Manual 1/50~1/60s-1/10000s
BLC Auto
White Balance Auto
Noise Reduction 2D/3DNR
Video Output AHD/TVI/CVI 1080P CVBS
UTC Support
DWDR Support
Privacy Masking Support
Defog Support
Motion detection Support
Mirro Support
Language English/Simplified&Traditional Chinese/French
/German/Italian/Spanish/Polish/Russian /Portugal /Turkish/Dutch
Lens
Focus Length Fixed HD Pinhole Lens 3.7mm
Max Aperture F 1.4
Angle of View 79°
Mount Type M12
Iris Type Fixed Iris
General
Power Supply  DC12V±10%
Power Consumption  <5W
Working Condition Temperature:-20°C~+50°C, Humidity:10%~90%
Ingress Protection IP64
Dimensions 30*30*14(H)mm
Weight 0.05kg
