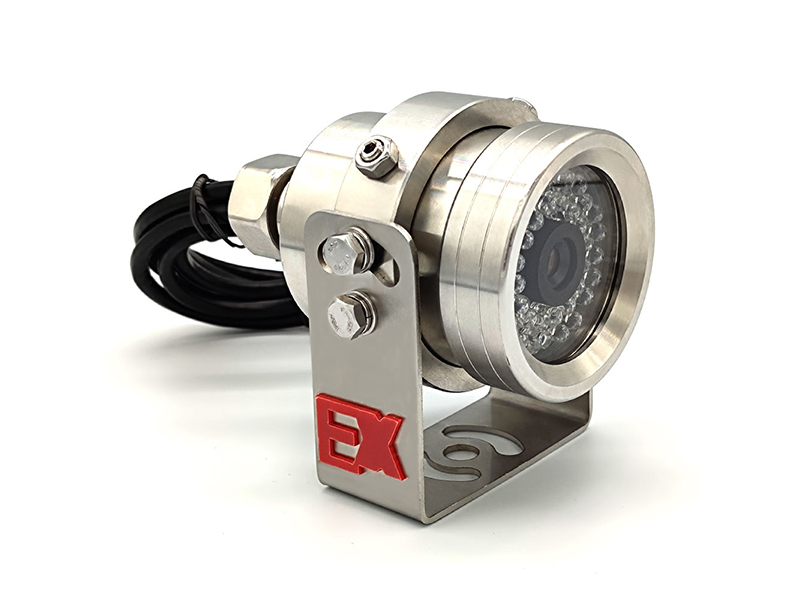

Product Name: 3MP IP68 Starlight Explosion Proof Outdoor IP Camera            Product Model: VDC-EX301B-IP30MS

Main Features：

◆3MP IP68 Explosion Proof Outdoor IP Camera
◆1/2.8" Progressive Scan CMOS
◆2304×1296@20fps 1920*1080@25~30fps
◆36pcs Φ5 Led IR distance 25~30M
◆HD Fixed 6mm Lens
◆Support ONVIF
◆DC 12V&POE Power supply
3MP IP68 Starlight Explosion Proof Outdoor IP Camera

Model No VDC-EX301B-IP30MS
HARDWARE
Image Sensor 1/2.8" Progressive Scan CMOS
SOC MStar337+ SONY IMX307
Effective Pixel 2304×1296@25fps 1920*1080@25~30fps
Scanning System Progressive
Electronic Shutter Auto/Manual 1/50~1/60s-1/10000s
Min.Illumination Color:0.01 Lux/F1.2, B/W:0.001Lux/F1.2, 0Lux(IR ON)
S/N Ratio ≥65dB(ACG off)
CAMERA FEATURE
IR Distance 36pcs Ф5 IR Led IR 25~30M
Day/Night Auto(ICR)/Color/B/W
BLC Auto
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3DNR
DWDR  ≥80dB
LENS
Focus Length M12 Fixed Lens 6mm(8mm/12mm Optional)
Max Aperture F1.4
Angle of View 58°(1/2.7")(Horizental)
Mount Type M12
Iris Type Fixed Iris
VIDEO&Audio
Video Compression H.265/H.265+/H.264/MJPEG
Stream Main Stream:2304×1296@25fps 1920x1080(1-25/30fps)
Sub Stream:704x576(1-25/30fps)
Video Bit rate H.265 :64K~2048Kbps H.264:64K-4096Kbps
Audio Compression G.711a/ G.711u/G.726
NETWORK
Ethernet RJ45(10/100M Base-T)
Protocol IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP,
SMTP,NTP, DHCP, DNS, PPPOE, DDNS, FT
ONVIF ONVIF Version 2.4 /GB28181
Smart Phone iPhone, IPad, Android
Browser IE, Chrome, Firefox, Safari
GENERAL
Power Supply  DC12V±10%  POE(802.3af)  (POE Cable)
Power Consumption  <5W
Working Condition Temperature:-20°C~+60°C, Humidity:10%~90%
Explosion Proof Grade IP68
Housing Material 304L stainless steel
Ingress Protection IP66
Dimensions 125x106 mm  Packing size:23*13*16CM
Weight 1.5kg
