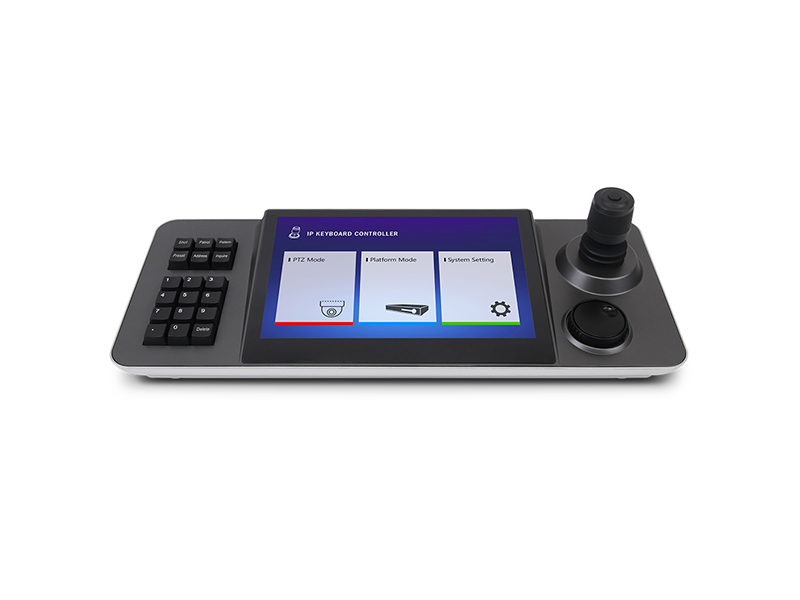

内容编辑Product Name: Touch Screen 4D Joystick Keyboard IP PTZ Controller Product Model: VDC-KB700-I
Main Features：
◆ 10.1 inch capacitive touch screen◆ Support Android 6.0 operating system
◆Support H.265 / H.264 / decoding, maximum 4 screen segmentation
◆Support viewing images on the touch screen or putting images on the display via HDMI
◆ Support the network access to the full range of our PTZ Camera
◆ Support PTZ control, preset,Patrol and track set and call
◆Support ONVIF protocol
◆ Support up to 1024 devices to add
◆Support U disk upgrade, external mouse
| Model NO | VDC-KB700-I |
| HARDWARE | |
| Operating System | Android 6.0 |
| Screen size | IPS 10.1 inch Screen，Resolution 1280*800 capacitive touch screen |
| Display | Support HDMI 4K@30fps |
| Decoding capability | 1.Support h264/h265 2.Max Support h264 1x1080p@60fps |
| 3.Max Support h264 4x720p@30fps 4.Max Support h265 1x4k@30fps | |
| Protocol | Support Onvif2.4 ,Support OEM |
| Function | 1.Supports up to 1024 devices to add 2.Support PTZ Control |
| 3.Support Preset 4.Support Patrol 5.Support Pattern | |
| System Settings | 1.Support language settings 2.Support password modification |
| 3.Support U disk upgrade | |
| Power | Standard 5.5/2.1 Power interface， DC 12V2A±10% |
| Interfaces | > One RJ45 (Network) > One Phoenix Port（RS485） |
| > One RS232 > One HDMI Output,Version 1.4 | |
| > One USB2.0 > A standard 3.5MM headphone jack | |
| Operation interface | Support 4D Joystick,Support button |
| Power consumption | ＜15W： |
| Standby current | ＜100mA |
| Mean time between failures | ＞30000 |
| Working humidity | 10%-90%RH() |
| Working temperature | -10°C-40°C |
| Storage temperature | -40°C-60°C |
| Packing size | 52*250*130mm |
| Outer box size and specifications | 680*396*246mm / 5 sets(54*25*14cm/1pcs 2.75kg) |
| Net Weight | 1580 G /set |
