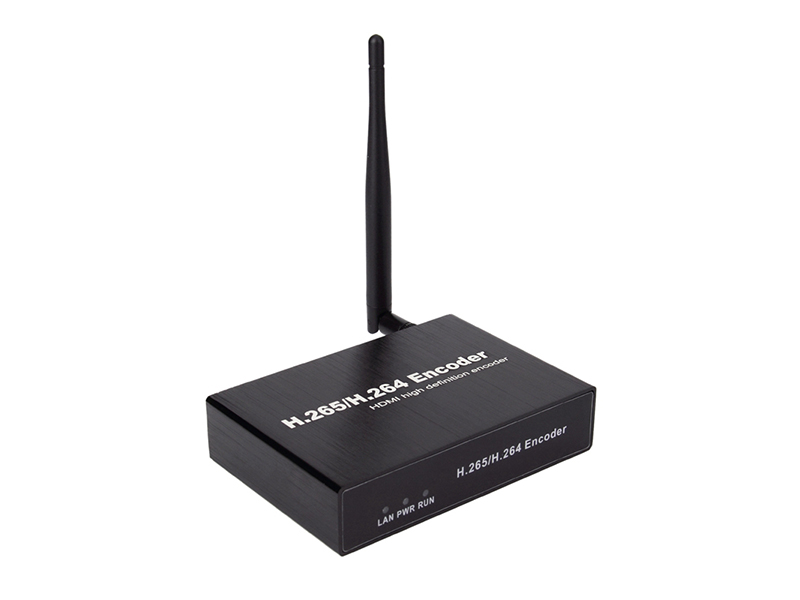

Product Name: 1080P WIFI H.265 HDMI Video Encoder            Product Model: VDC-HDMI2IP-W

Main Features：

1.H.265 HDMI Video Encoder
2.Support Baidu Cloud,Youtube、Wowza、LeCloud and other streaming media
3. Support H.265 NVR from HIKVISION like H.265 78 and 79 Series NVR
4. WIFI&RJ45
5. Support TF card storage Max 128GB
1080P WIFI H.265 HDMI Video Encoder

H.265/H.264 HDMI Video Encoder
Basic Information    User: admin; Password：12345   IP：192.168.1.120
Model VDC-HDMI2IP-W
Chipset   HiSilicon (1080p@30fps)
Video/Audio Compression Video Encoding   H.265/H.264 Encoding
Audio   AAC、G.711U、G.711A;  Sample: 48000kHz
Bitrate   CBR/VBR； 64kbps-12Mbps(adjustable)
Frame rate   50Hz：1-25fps(Hi3516D); 60Hz：1-30fps(Hi3516A) (adjustable)
Bitrate   Main Stream：1920*1080、1280*960、1280*800、1280*720；
  Sub Stream：1280*720；
  Mobile：720*576、640*480、640*352、320*240
Video Stream TS   http://192.168.1.120:80/ts/0(main stream)
  http://192.168.1.120:80/ts/1(sub stream)
RTSP   rtsp://192.168.1.120:554/live/0(main stream)
  rtsp://192.168.1.120:554/live/1(sub stream)
Network Protocols Protocols   TCP/IP、UDP、RTSP、ONVIF、HTTP、DNS、RTMP、TS Flow、DHCP
Wi-Fi Protocols   Support 802.11b/g/n、WEP、WPA、WPA2 Encrypted Protocol
Interfaces Network Port   RJ45 10M / 100M Adaptive Ethernet Interface
HDMI   1ch HDMI input
Reset   Support
WIFI    WIFI supported, less than 30 meters for indoor while less than 100 meters for outdoor
Others Operating Environment   Temperature: -10℃~+55℃; Humidity: <95%
Server   Support Baidu Cloud、Youtube、Wowza、LeCloud and other streaming media servers
NVR Compatibility   Support H.265 NVR from HIKVISION like H.265 78 and 79 Series NVR
Power Supply   DC 12V/1A
Consumption   ≤3W
Dimension   115(L) * 70(W) * 33(H)mm  Box:172*150*60mm
Weight   About 0.42KG
