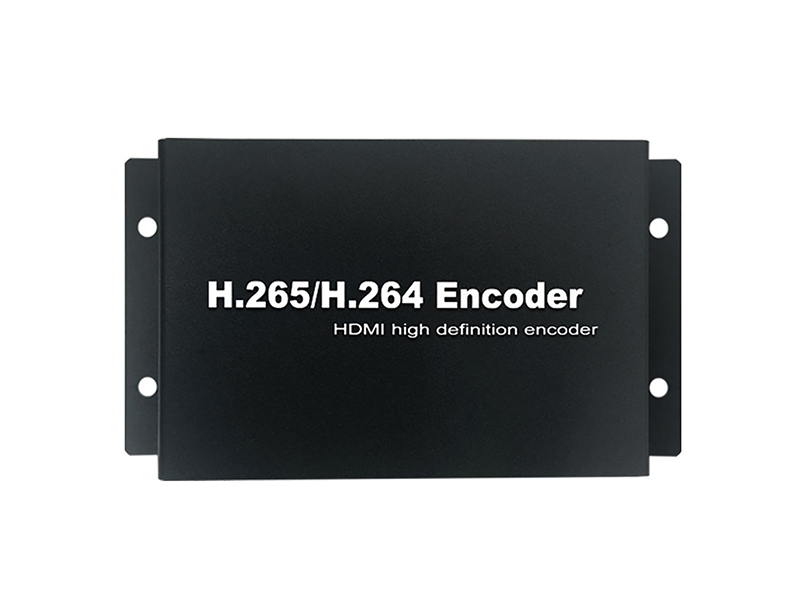

Product Name: 1080P H.265 HDMI Video Encoder with POE             Product Model: VDC-HDMI2IP-P

Main Features：

1.H.265 HDMI Video Encoder
2.Support Baidu Cloud,Youtube、Wowza、LeCloud and other streaming media
3. Support H.265 NVR from HIKVISION like H.265 78 and 79 Series NVR
4. With POE Power Supply
1080P H.265 HDMI Video Encoder with POE

H.265/H.264 HDMI Video Encoder
Basic Information    User: admin; Password：12345   IP：192.168.1.120
Model VDC-HDMI2IP-P
Chipset   HiSilicon (1080p@30fps)
Video/Audio Compression Video Encoding   H.265/H.264 Encoding
Audio   AAC、G.711U、G.711A;  Sample: 48000kHz
Bitrate   CBR/VBR； 64kbps-12Mbps(adjustable)
Frame rate   50Hz：1-25fps(Hi3516D); 60Hz：1-30fps(Hi3516A) (adjustable)
Bitrate   Main Stream：1920*1080、1280*960、1280*800、1280*720；
  Sub Stream：1280*720；
  Mobile：720*576、640*480、640*352、320*240
Video Stream TS   http://192.168.1.120:80/ts/0(main stream)
  http://192.168.1.120:80/ts/1(sub stream)
RTSP   rtsp://192.168.1.120:554/live/0(main stream)
  rtsp://192.168.1.120:554/live/1(sub stream)
Network Protocols Protocols   TCP/IP、UDP、RTSP、ONVIF、HTTP、DNS、RTMP、TS Flow、DHCP
Wi-Fi Protocols   Support 802.11b/g/n、WEP、WPA、WPA2 Encrypted Protocol
Interfaces Network Port   RJ45 10M / 100M Adaptive Ethernet Interface
HDMI   1ch HDMI input
Reset   Support
WIFI    WIFI supported, less than 30 meters for indoor while less than 100 meters for outdoor
Others Operating Environment   Temperature: -10℃~+55℃; Humidity: <95%
Server   Support Baidu Cloud、Youtube、Wowza、LeCloud and other streaming media servers
NVR Compatibility   Support H.265 NVR from HIKVISION like H.265 78 and 79 Series NVR
Power Supply   DC 12V/1A/POE
Consumption   ≤3W
Dimension   115(L) * 70(W) * 33(H)mm  Box:172*150*60mm
Weight   About 0.42KG
