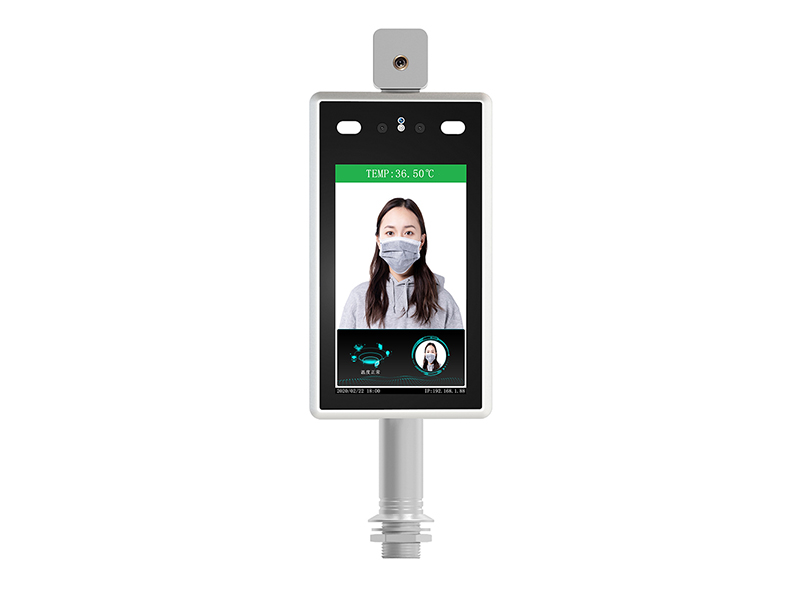

内容编辑Product Name: Body temperature detecting access control camera Product Model: VDC-FRIP20SL-T2
Main Features：
1.Non-contact automatic body temperature detection camera2.Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃)
3. Automatically identify unmasked personnel and provide real-time warning
4.Support mid-range temperature measurement and real-time warning of high temperature
5.Support binocular live detection
6.Unique face recognition algorithm to accurately recognize faces, face recognition time
| Model No | VDC-FRIP20SL-T2 |
| HARDWARE | |
| Chipset | Hi3516DV300 |
| System | Linux operation system |
| RAM | 16G EMMC |
| Image sensor | 1/2.7" CMOS |
| Lens | 4.5mm |
| Min.Illumination | Color:0.005 Lux/F1.2, B/W:0.007Lux/F1.2, 0Lux(IR ON) |
| S/N Ratio | ≥50dB |
| Camera Parameters | |
| Camera | Binocular camera supports live detection |
| Effective pixel | 2Mega pixel，1920*1080 |
| Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
| SNR | ≥50db(AGC OFF) |
| WDR | ≥80db |
| Face Recognition | |
| Height | 1.2-2.2 M, angle adjustable |
| Distance | 0.5-3 Meters |
| View angle | Vertical ±30 degree |
| Reco. Time | ＜500ms |
| Function | Support 22400 faces database and 100000 records |
| Temperature | |
| Range | 30-45（℃） |
| Accuracy | ±0.3（℃） |
| Distance | 0.3-0.8M |
| Response time | ＜300ms |
| Interface | |
| Internet interface | RJ45 10M/100M Ethernet |
| Weigand port | Support input/output 26 and 34 |
| Alarm output | 1channel relay output |
| USB port | 1USB port (Can be connected to ID identifier） |
| General | |
| Power input | DC 12V/3A |
| Power consumption | 20W(MAX) |
| Working temperature | -15℃ ～ +60℃ |
| Humidity | 5～90%, no condense |
| Dimension | 123.5(W) * 84(H) *361.3(L)mm |
| Weight | 2.1 kg |
| Column aperture | 33mm |
|
Precautions: - The temperature measuring device should be used in a room with a room temperature between 10 ℃ -40 ℃. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3 meters; - Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable; - The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area |
|
