内容编辑Main Features：
1.Thermal Image Pixel 256*192 2.Sensor Size 12μm 3.Non-contact Temp Measurement，Accuracy±0.3℃ 4.Temp Range：-15℃~150℃ 5.1/2.8” 2.0M CMOS Image sensor 6.0.005Lux@F1.2 color，0.001Lux@F1.2 B/W 7.Max resolution up to 1920x1080@30fps 8.HDMI output video and audio 9.Built in EMMC 16GB,Storage more 100000 temperature detect records 10.with blackbody
|
Model No. |
VDC-FRT9265R-HB |
|
|

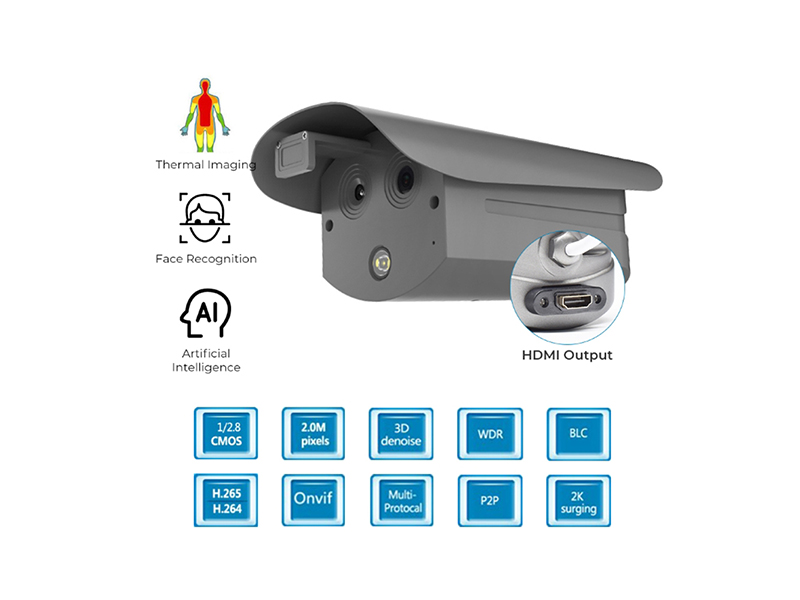

HDMI Output 2MP AI Thermal Binocular Camera Built in Black Body |
||
|
Thermal Imagery Module |
Sensor Type |
Silicon oxide non-cooled VOx infrared detector |
|
Resolution |
256x192 |
|
|
Size |
12μm |
|
|
Temp Range |
-15℃～150℃ |
|
|
Temp Accuracy |
±0.3℃@target Temp 35℃~38℃； |
|
|
Lens |
2.0mm/3.2mm/4.3mm option |
|
|
Picture |
white heat, black heat, fusion, rainbow, autumn, noon, iron red, amber and other pseudo-color |
|
|
Visible Light module |
Image sensor |
1/2.8”2.0M Pixel CMOS |
|
Mini lux |
0.005Lux@F1.2（color）、0.001Lux@F1.2（B/W） |
|
|
WDR Range |
≥80dB |
|
|
EMMC |
Built in EMMC storage 16GB. Support max 100000 temperature detect records |
|
|
S/N Rate |
≥46dB（AGC OFF） |
|
|
Lens |
4mm |
|
|
View Angle |
Horizontal 84°、Vertical 45° |
|
|
AI
|
Face snapshot |
The built-in deep learning AI algorithm supports the simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, capture upload, support FTP、HTTP and other ways to upload face, head and shoulder, upper body, whole body, original picture and other pictures。 |
|
Face Recognition |
Built in 50000 Face database |
|
|
Temperature Function |
Temp Detect |
Support global and regional temperature measurement |
|
Temp abnormal Alarm |
High temp limitation,Low Temp limit Area temperature difference alarm |
|
|
Network protocol |
Support RTSP，RTP，TCP，UDP，UPNP，DHCP，PPPoE，ONVIF，GB/T 28181 Protocol Etc |
|
|
Analog output |
BNC(N/A) |
|
|
Network Interface |
1CH 10/100BaseT Ethernet，RJ45 |
|
|
Alarm &Audio |
1 ch alarm out（Alarm linkage）1ch audio in/out |
|
|
HDMI output |
1 CH HDMI Interface |
|
|
General |
Working Temp |
-20℃～55℃ |
|
Working humidity |
0%-90% RH |
|
|
Protect grade |
IP64 |
|
|
Power supply |
12VDC |
|
|
consumption |
≤5W |
|
|
Product size |
235mm*136mm*92mm |
|
|
Weight |
＜1.2kg |
|
