Model No.

VDC-FRT9265R-HP

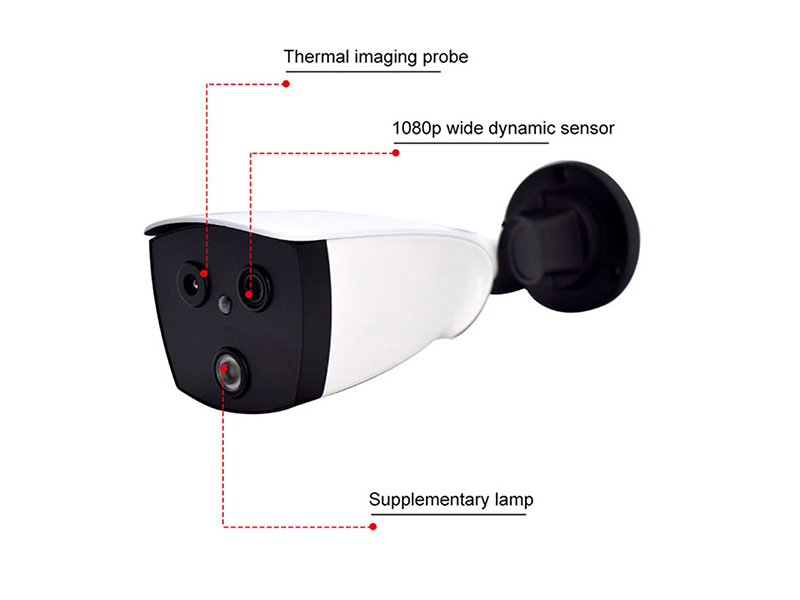

2MP AI Temperature indicator Thermal Binocular Camera

Thermal Imagery Module

Sensor Type

Silicon oxide non-cooled VOx infrared detector

Resolution

256x192

Size

12μm

Temp Range

-15℃～150℃

Temp Accuracy

±0.3℃@target Temp 35℃~38℃；

±0.6℃@target Temp 20℃~33℃ or 38℃~50℃；

Lens

2.0mm/3.2mm/4.3mm option


white heat, black heat, fusion, rainbow, autumn, noon, iron red, amber and other pseudo-color

Visible Light module

Image sensor

1/2.8”2.0M Pixel CMOS

Mini lux

0.005Lux@F1.2（color）、0.001Lux@F1.2（B/W）

WDR Range

≥80dB

S/N Rate

≥46dB（AGC OFF）

Lens

3.6/4mm

View Angle

Horizontal 84°、Vertical 45°

AI

Face snapshot

The built-in deep learning AI algorithm supports the simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, capture upload, support FTP、HTTP and other ways to upload face, head and shoulder, upper body, whole body, original picture and other pictures。

Face Recognition

Built in 50000 Face database

Temperature Function

Temp Detect

Support global and regional temperature measurement

Temp abnormal Alarm

High temp limitation,Low Temp limit Area temperature difference alarm

Network protocol

Support RTSP，RTP，TCP，UDP，UPNP，DHCP，PPPoE，ONVIF，GB/T 28181 Protocol Etc

Analog output

BNC(N/A)

Network Interface

1CH 10/100BaseT Ethernet，RJ45

Alarm

1 ch alarm out（Alarm linkage）

Audio

1ch audio in/out

General

Working Temp

-20℃～55℃

Working humidity

0%-90% RH

Protect grade

IP67

Power supply

12VDC

consumption

≤5W

Product size

246mm*101mm*81mm

Weight

＜1kg
