内容编辑Main Features：
Video input : HDMI input Max support 1080PVideo output: 1CH 1080p AHD output
1CH 1080P AHD loopout
1CH HDMI output

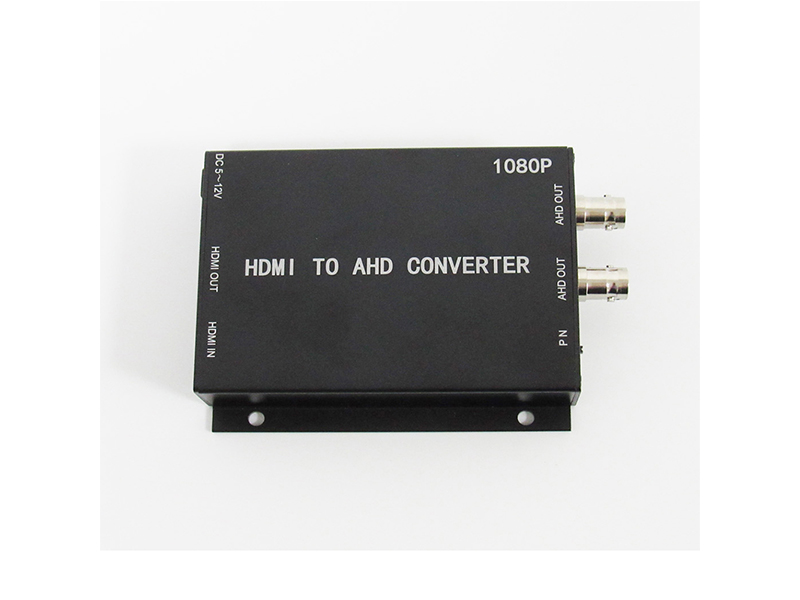

1080P HDMI to AHD video converter
1.Specifications:
Port
AHD out port
Standard BNC X 2
HDMI in port
Standard HDMI connector X1
HDMI out port
Standard HDMI connector X1
Power in port
DC_2.1mm X 1
Switcher control
Control AHD output format, default 1080p30
AHD
AHD output format
AHD-1080p25/30
HDMI
HDMI Input &output
480i60 , 576i50, 720p60, 1280*1024p60 1024*768p 1366*768p60,1080i50, 1080i60, 1080p25, 1080p30,1080p50,1080p60 Etc.
Other
parameters
Power
DC 5V~12V input
Red light
Light on=Power in; light off=power off
Power consumption
Currency<300mA when DC12V input
Working Temperature:
From -10℃to 60℃（Better 0℃~50℃）
Working Humidity:
20% ~ 80%
Net weight
About 180g(with adaptor)
Product size
L*W*H（116mm*75mm*25mm）
Packing Size
L*W*H:17*11.5*4.5cm
AHD Distance
Up to 500M
Symbol
Description
HDMI INPUT
HDMI signal input
HDMI OUTPUT
HDMI signal Loop output
AHD OUT
AHD signal output
AHD OUT
AHD signal Loop output
DC 5~12V
DC5V~12V power input
Symbol
Mode
RED Light
Light on
Power on
Light off
Power off
P
PAL
1080P@25P
N
NTSC
1080P@30P
